How a Program Is Shaped

A program for the preview can take one of four shapes: draw once, draw every frame, loop, or draw step by step. This page shows each one, then how to read the keyboard, mouse and touch, and how to read a value back from the preview.

The names you can use

These are ready in every file, with no import:

1. Draw once

Write your drawing at the top level, with no functions. It runs once, top to bottom, and the program finishes.

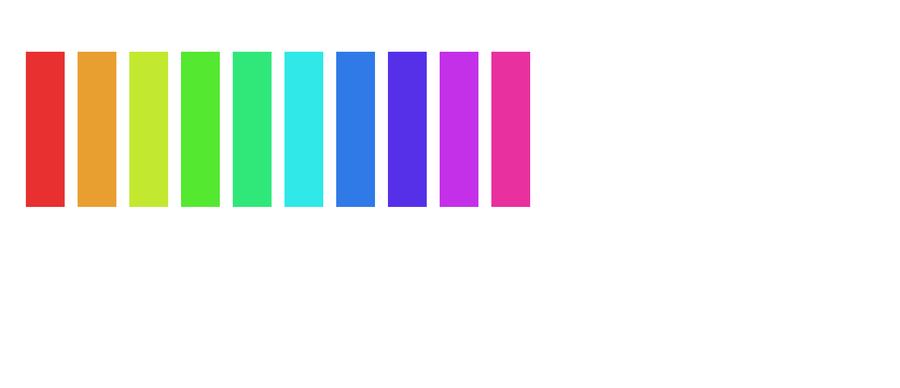

ctx.fill_style = "white"
ctx.fill_rect(0, 0, width, height)

for i in range(10):
    ctx.fill_style = f"hsl({i * 36}, 80%, 55%)"
    ctx.fill_rect(20 + i * 40, 40, 30, 120)

Tap to enlarge

This is the simplest shape, good for trying things out. The drawing stays put when the preview changes size, but it does not redraw to fit: for a picture that adapts to the preview, or that moves, put the drawing in draw() (below), which redraws it every frame. Most examples in this guide do.

2. Draw every frame: draw() and update(dt)

Define a function called draw and it is called every frame, many times a second. Define update(dt) too and it is called just before each draw(), with dt the number of seconds since the last frame (about 0.016 at 60 frames a second).

Use update to move things and draw to paint them. Paint the background first in draw(): the preview keeps what was drawn last frame until you cover it. Set the colours, font and line width in draw() too, next to what they style: a resize of the preview resets them.

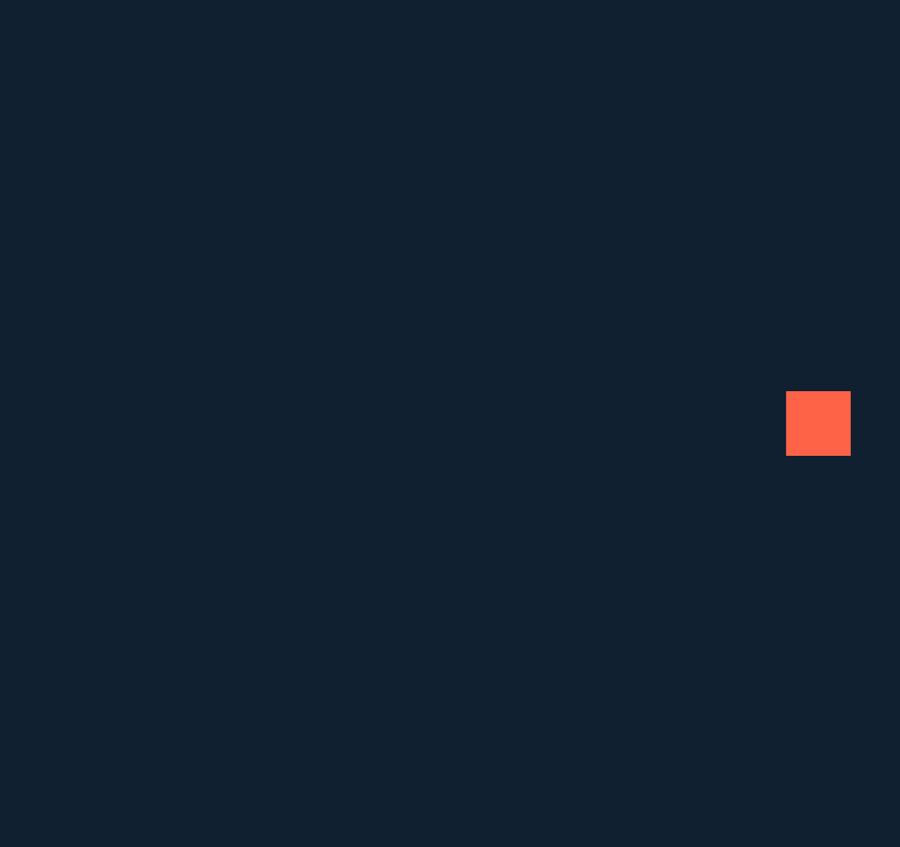

x = 0

def update(dt):
    global x
    x = (x + 150 * dt) % width      # 150 points per second

def draw():
    ctx.fill_style = "#102030"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "tomato"
    ctx.fill_rect(x, height / 2 - 25, 50, 50)

Tap to enlarge

Moving by speed * dt keeps the speed the same on a fast device and a slow one.

You can also define setup(). It is called once, after the top level has run and before the first frame. Code at the top level does the same job, so use whichever reads better.

A program with draw() or update() keeps running until you press Stop.

3. A loop with await frame()

If you prefer to write a loop, await frame() shows what you have drawn and waits for the next frame. Every pass of the loop is one frame.

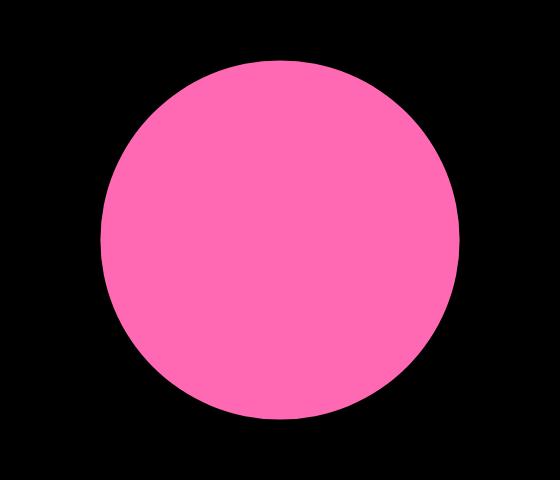

import math

t = 0
while True:
    ctx.fill_style = "black"
    ctx.fill_rect(0, 0, width, height)
    r = 60 + 40 * math.sin(t)
    ctx.fill_style = "hotpink"
    ctx.begin_path()
    ctx.arc(width / 2, height / 2, r, 0, math.tau)
    ctx.fill()
    t += 0.05
    await frame()

Tap to enlarge

await works at the top level of the file, with no async def needed.

await vsync() is another name for await frame(): the same function. Use whichever you prefer. Both wait for the screen's next refresh.

The page never shows a half-drawn frame. Everything you draw before the next await frame() or await vsync() appears together, at the next refresh. So clear the canvas and draw the new picture in the same frame, as the loop above does, and nothing flickers.

Every while True: loop must await frame() (or await sleep(...)). A loop that never waits never lets the preview draw, and the program looks frozen. See Tips and limits.

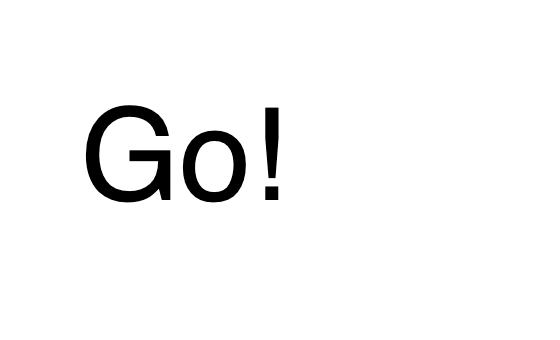

await sleep(seconds) waits for that long, which is handy for slow, step-by-step programs:

for word in ["3", "2", "1", "Go!"]:
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "black"
    ctx.font = "64px sans-serif"
    ctx.fill_text(word, 40, 100)
    await sleep(1)

Tap to enlarge

4. Drawing step by step with await flush()

Without draw(), the preview shows a top-level drawing when the program finishes. To watch it being built, call await flush(): it sends what has been drawn so far, now, and carries on.

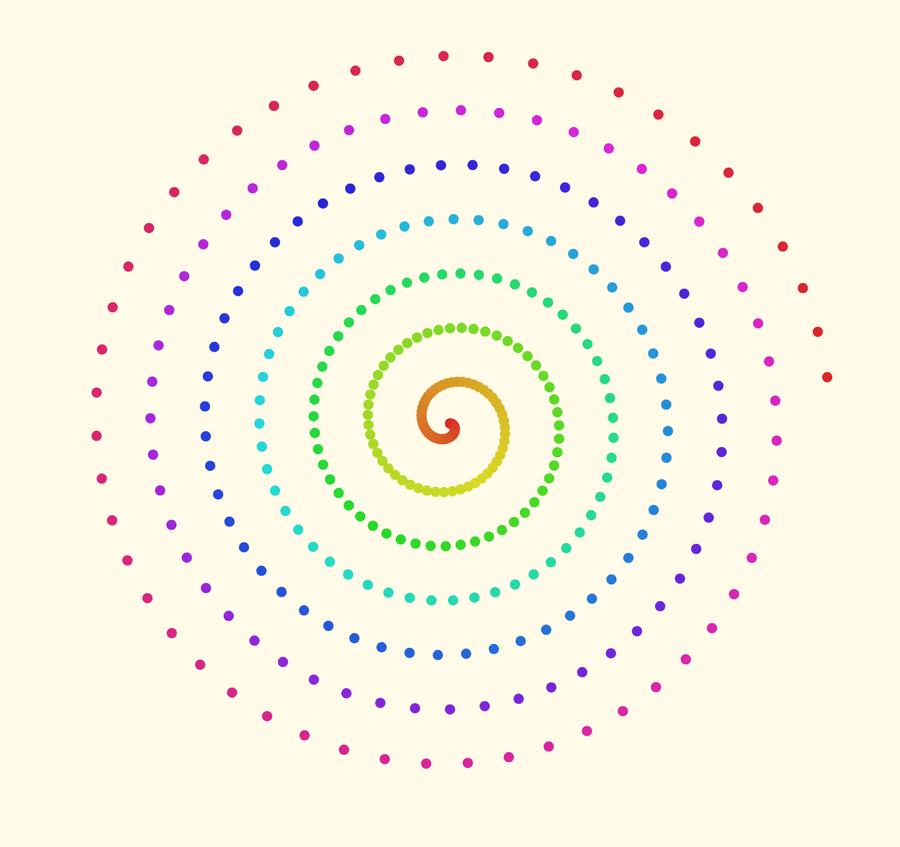

import math

ctx.fill_style = "#fffbe8"
ctx.fill_rect(0, 0, width, height)
cx, cy = width / 2, height / 2
for i in range(360):
    a = math.radians(i * 7)
    r = i * min(width, height) / 800
    ctx.fill_style = f"hsl({i}, 70%, 50%)"
    ctx.begin_path()
    ctx.arc(cx + math.cos(a) * r, cy + math.sin(a) * r, 4, 0, math.tau)
    ctx.fill()
    if i % 6 == 0:
        await flush()

Tap to enlarge

Each flush() costs a frame, so flush every few steps rather than after every single shape.

Starting by itself when the file opens

A file that draws opens with its preview beside the code, and starts by itself when its tab comes on screen. The program waits while you are on another tab, and carries on when you come back. About half a second after you stop typing, it runs again with the new code.

To make a file wait for Run instead, put this line near the top of the file, within the first 30 lines:

# pyctures: manual

It is a comment, so Python ignores it. Use it for programs that do a lot of work before they draw. The older line # pyctures: autorun is still accepted, and now says what already happens. See Starting and stopping.

Keyboard, mouse and touch input

Your Python program can read keyboard input, the mouse and touch. Click or tap the preview first so it has the keyboard.

What is pressed right now: keys and mouse

keys is a set of the keys held down, by name: "ArrowLeft", "ArrowRight", "ArrowUp", "ArrowDown", " " (space), "a", "Enter" and so on. mouse.x and mouse.y are where the pointer is, and mouse.down is True while the button or a finger is pressed. A finger on a touch screen counts as the mouse.

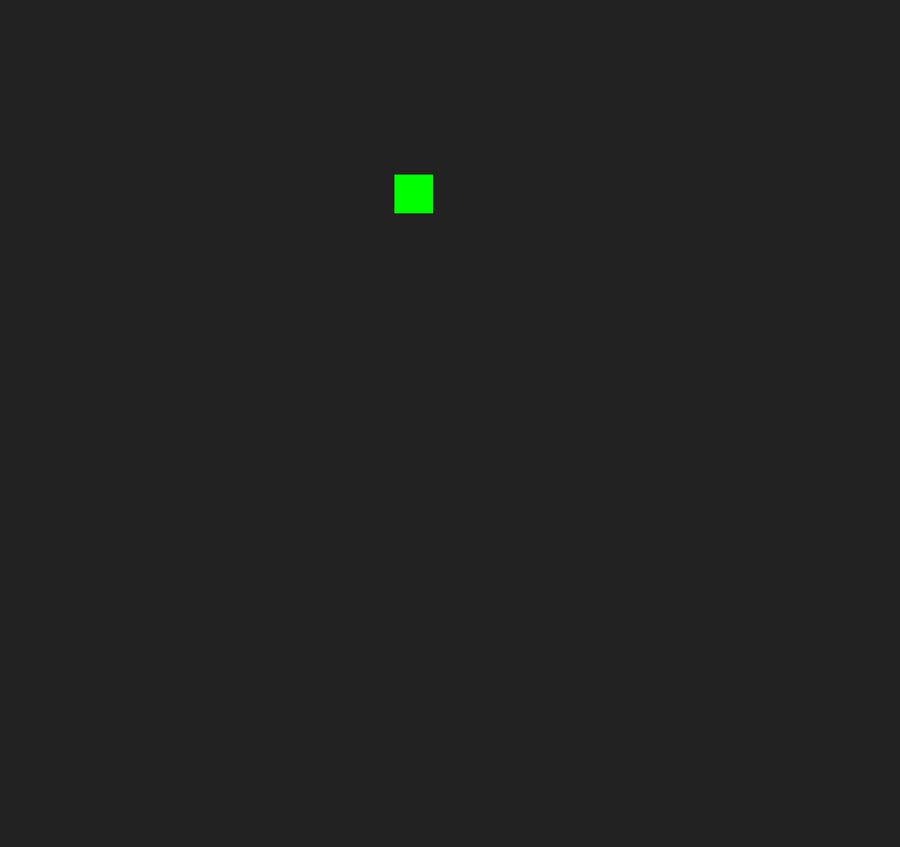

x, y = 200, 150

def update(dt):
    global x, y
    if "ArrowLeft" in keys:  x -= 200 * dt
    if "ArrowRight" in keys: x += 200 * dt
    if "ArrowUp" in keys:    y -= 200 * dt
    if "ArrowDown" in keys:  y += 200 * dt
    if mouse.down:
        x, y = mouse.x, mouse.y

def draw():
    ctx.fill_style = "#222"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "lime"
    ctx.fill_rect(x - 15, y - 15, 30, 30)

Tap to enlarge

mouse has more to read:

A scene that uses the pointer gets the right button too: no menu opens over it.

keys also says which of the modifier keys are held, with no name to remember:

print(keys) and print(mouse) show everything they hold, which helps when a key or a button does not do what you expect.

Once for each press: pressed and released

keys says a key is down for as long as it is held. To do something once for each press, such as a jump or a shot, use pressed: the set of keys that went down since the last frame. released is the set of keys that came up.

y = 0      # how high the box is above the ground
vy = 0     # its speed upwards

def update(dt):
    global y, vy
    if " " in pressed and y == 0:
        vy = 500                      # one jump for each press of the space bar
    vy -= 1200 * dt
    y = max(0, y + vy * dt)

def draw():
    ctx.fill_style = "#1b2a3a"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "seagreen"
    ctx.fill_rect(0, height - 40, width, 40)
    ctx.fill_style = "gold"
    ctx.fill_rect(width / 2 - 20, height - 80 - y, 40, 40)
    ctx.fill_style = "white"
    ctx.fill_text("Press space to jump", 10, 20)

Hold the space bar down and the box jumps once. With " " in keys in its place it would jump again each time it landed.

pressed, released, mouse.dx, mouse.dy and mouse.wheel tell you what happened since the last frame. They are set at the start of each frame and stay the same all through it, so they read the same in update, in draw and after an await frame().

When something happens: the on_ functions

Define any of these and they are called when the event happens:

A function may leave out the arguments it does not need: def on_key_down(key): and def on_mouse_down(x, y): are fine.

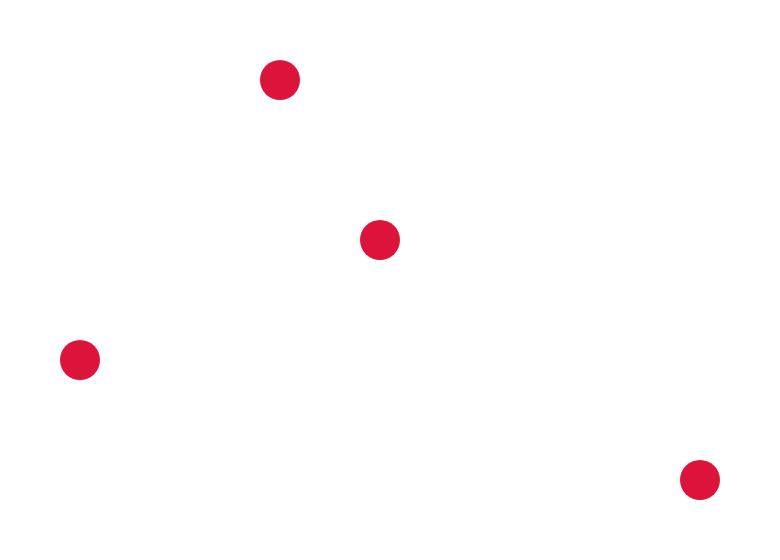

# Click or tap to add a dot. Press c to clear them.
dots = []

def on_mouse_down(x, y):
    dots.append((x, y))

def on_key_down(key):
    if key == "c":
        dots.clear()

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "crimson"
    for x, y in dots:
        ctx.begin_path()
        ctx.arc(x, y, 10, 0, 6.283)
        ctx.fill()

Tap to enlarge

Holding a key down does not repeat on_key_down. Use keys for things that should keep happening while a key is held, and on_key_repeat for a key that should repeat as it does in a text box, such as Backspace.

The on_ functions are called just before update, with everything that happened since the last frame.

Keys by their place: WASD on any keyboard

A key's name is the letter it types, and that depends on the keyboard. The key a British or American keyboard calls W types Z on a French one. A key's code is its place on the keyboard and is the same everywhere: "KeyW", "KeyA", "KeyS", "KeyD", "Space", "ArrowLeft", "Digit1", "ShiftLeft". keys.codes is the set of codes held, and on_key_down is given the code after the name.

x, y = 200, 150

def update(dt):
    global x, y
    if "KeyW" in keys.codes: y -= 200 * dt
    if "KeyS" in keys.codes: y += 200 * dt
    if "KeyA" in keys.codes: x -= 200 * dt
    if "KeyD" in keys.codes: x += 200 * dt

def on_key_down(key, code):
    global x, y
    if code == "Space":
        x, y = width / 2, height / 2

def draw():
    ctx.fill_style = "#222"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "orange"
    ctx.fill_rect(x - 15, y - 15, 30, 30)

Every finger: touches

mouse follows one pointer: the first finger to go down. touches is a list of every finger that is down right now. A pressed mouse button is in the list too, so one piece of code works on a phone and on a computer. Each touch has:

This scene paints with every finger at once, each in its own colour:

colours = ["crimson", "royalblue", "seagreen", "orange", "purple"]
count = 0

ctx.fill_style = "white"
ctx.fill_rect(0, 0, width, height)

def on_touch_start(touch):
    global count
    touch.colour = colours[count % len(colours)]
    count += 1

def update(dt):
    ctx.line_width = 8
    ctx.line_cap = "round"
    for touch in touches:
        ctx.stroke_style = touch.colour
        ctx.begin_path()
        ctx.move_to(touch.x - touch.dx, touch.y - touch.dy)   # where it was last frame
        ctx.line_to(touch.x, touch.y)
        ctx.stroke()

A touch is the same object from the moment it goes down until it comes up, so a scene can keep things of its own on it, as touch.colour is kept here. on_touch_end(touch, cancelled) is given it one last time. cancelled is True when the device took the touch away, for example for a gesture of its own, so it should not count as a tap.

Zooming: pinch and the wheel

Two fingers moving apart or together is a pinch. pinch.scale is 1 when the second finger goes down, 2 when the fingers are twice as far apart, and 0.5 when they are half as far. pinch.change is how much the scale changed since the last frame, so multiplying by it every frame is all a zoom needs. pinch.x and pinch.y are the point between the fingers. A pinch on a trackpad sets the same values.

zoom = 1

def update(dt):
    global zoom
    zoom *= pinch.change            # two fingers, or a pinch on a trackpad
    zoom *= 0.999 ** mouse.wheel    # the mouse wheel: rolling up zooms in
    zoom = max(0.2, min(5, zoom))

def draw():
    ctx.fill_style = "#111"
    ctx.fill_rect(0, 0, width, height)
    size = 100 * zoom
    ctx.fill_style = "deepskyblue"
    ctx.fill_rect(width / 2 - size / 2, height / 2 - size / 2, size, size)
    ctx.fill_style = "white"
    ctx.fill_text("zoom %.2f" % zoom, 10, 20)

When no pinch is going on, pinch.scale and pinch.change are 1. on_pinch(scale, change) and on_wheel(amount) are called as it happens, if you would rather have a function.

In the preview the wheel and a trackpad's pinch always go to your program. On a web page of your own it is different: see Use it outside Circuitry.

Callbacks

You can pass a Python function anywhere the preview expects one. The function receives the event, and its fields read as attributes: event.x, event.y, event.type, event.key.

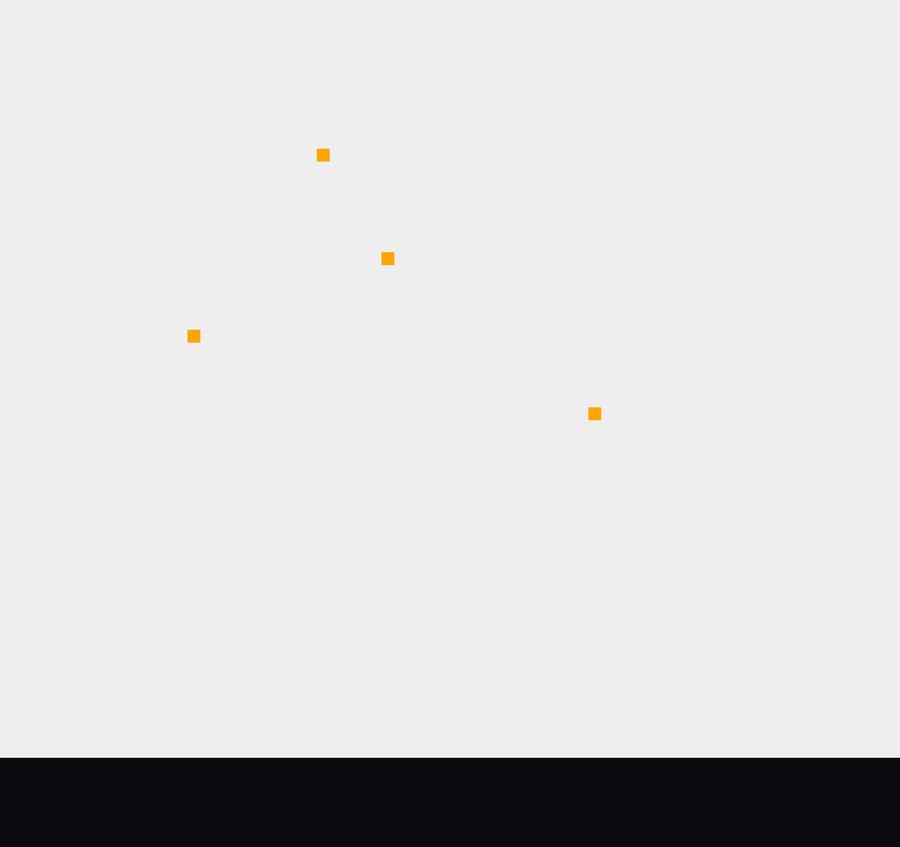

def clicked(event):
    ctx.fill_style = "orange"
    ctx.fill_rect(event.x - 5, event.y - 5, 10, 10)

ctx.fill_style = "#eee"
ctx.fill_rect(0, 0, width, height)
canvas.add_event_listener("click", clicked)

Tap to enlarge

A callback can be async def, so it can await a value (below).

How calls work

The names above reach the preview, and a few rules make them read like ordinary Python:

• snake_case works. ctx.fill_rect is fillRect, ctx.fill_style is fillStyle. The standard names work too, so ctx.fillRect(...) is the same call. This guide uses snake_case for 2D.
• A capitalised name makes something new. THREE.Mesh(geometry, material) creates a new mesh; you never write new.
• Keyword arguments become an options object. THREE.MeshStandardMaterial(color="red", roughness=0.4) passes {color: "red", roughness: 0.4}.
• Python values travel as you would expect. Numbers, strings, True/False/None, lists and dicts all work as arguments, and so do numbers from libraries such as numpy.
• Changing a value in place works. mesh.rotation.y += 0.01 and light.intensity *= 0.9 are worked out in the preview, with no need to read the old value first.

Reading a value back with await

Drawing only sends instructions to the preview, which is why it is fast. Occasionally you need an answer back, such as the width of some text. Put await in front and you get the value:

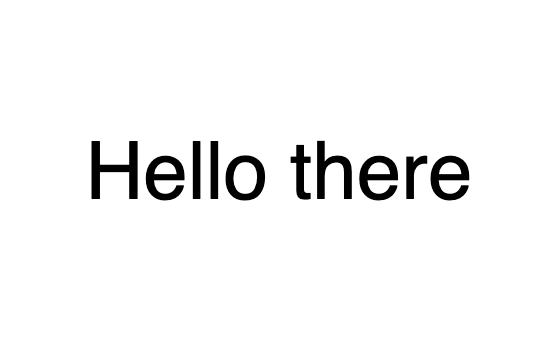

ctx.font = "40px sans-serif"
text_width = await ctx.measure_text("Hello there").width
print("The text is", text_width, "points wide")

def draw():
    ctx.fill_style = "white"
    ctx.fill_rect(0, 0, width, height)
    ctx.fill_style = "black"
    ctx.font = "40px sans-serif"
    ctx.fill_text("Hello there", (width - text_width) / 2, height / 2)

Tap to enlarge

Things to know:

• Every read waits a frame, so a program that reads every frame runs at half speed or less. Read rarely: once at the start, or when the user clicks.
• Keep your own numbers in Python. Rather than reading mesh.position.x back, keep x in a Python variable, change it, and set mesh.position.x = x. A value you set from Python is remembered, so reading it back needs no await.
• Using a preview value as if it were a Python number (if mesh.position.x > 3:) stops with an error that says to read it with await.
• To await inside a function, make it async def. draw, update and callbacks can all be async.
