Tutorial: Your First Drawing

In this tutorial you draw a house on a hill, with the sun in the sky, using rectangles, a circle, a triangle and some words. It takes about ten minutes and needs no Python beyond the basics.

1. Make the file

From the new-document menu (+), choose Code, then Python, and call the file house.py. It opens split, with the code on the left and the preview on the right.

2. Paint the sky

Type this and press Run:

def draw():
    background("lightskyblue")

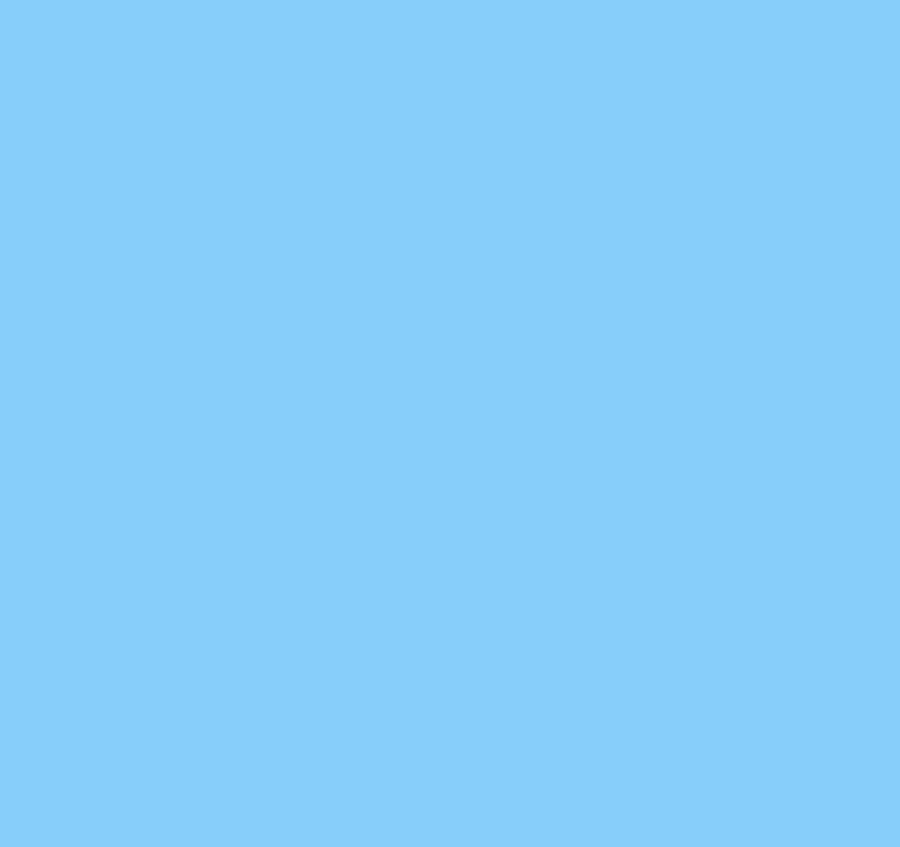

The preview turns blue.

  • def draw(): is a function the preview calls every frame. Anything inside it is drawn again and again, so your picture stays put even when the preview changes size.
  • background("lightskyblue") paints the whole preview that colour. A colour is a name in quotes; there are about 140 names, and Colours lists other ways to write one.

Press Stop when you want to stop the program; press Run again after each change.

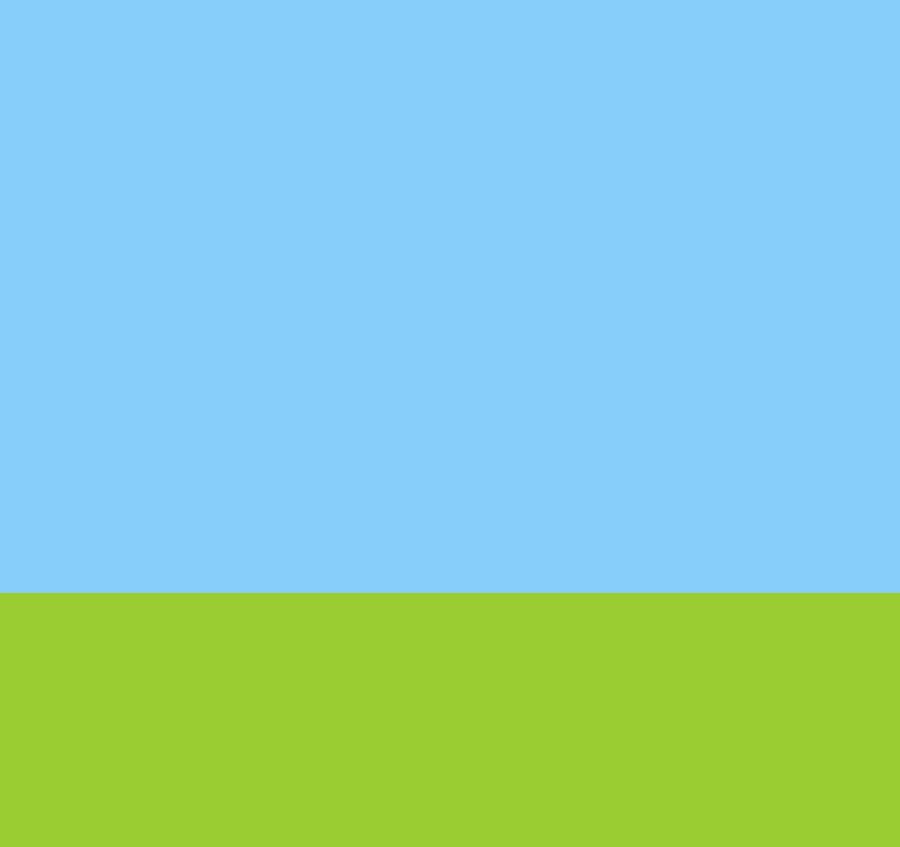

3. Add the ground

Add these lines inside draw(), under the sky. Keep the four spaces at the start of each line: they are what put a line inside the function.

def draw():
    background("lightskyblue")

    ground = height * 0.7
    rect(0, ground, width, height - ground, "yellowgreen")

rect(x, y, width, height, colour) draws a filled rectangle. x, y is its top-left corner, and (0, 0) is the top-left corner of the preview. y counts down from the top, so height * 0.7 is 70% of the way down. The green rectangle starts there and fills the rest: width and height are the size of the preview.

4. The whole picture

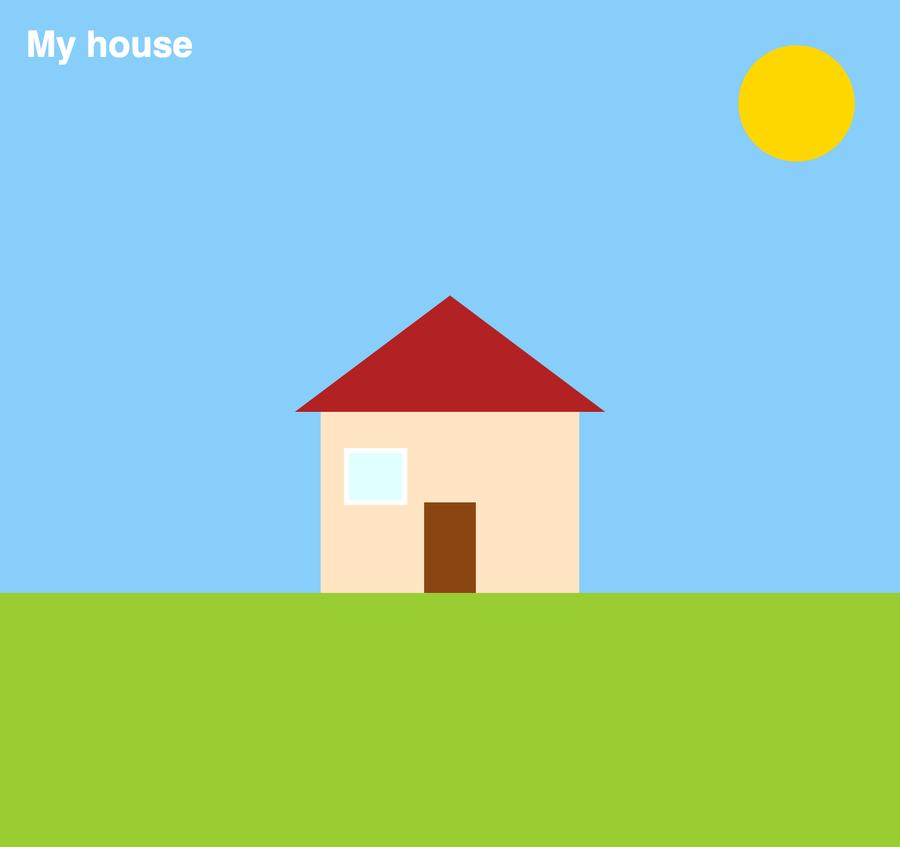

Here is the finished drawing. Read the comments to see which lines draw what, then run it.

def draw():
    # sky and ground
    background("lightskyblue")
    ground = height * 0.7
    rect(0, ground, width, height - ground, "yellowgreen")

    # the sun
    circle(width - 80, 80, 45, "gold")

    # the house
    x = width / 2 - 100        # left edge of the house
    w, h = 200, 140            # its width and height
    top = ground - h           # its top edge
    rect(x, top, w, h, "bisque")

    # the roof: a triangle, by its three corners
    triangle(x - 20, top, x + w / 2, top - 90, x + w + 20, top, "firebrick")

    # the door, and a window with a white frame
    rect(x + 80, ground - 70, 40, 70, "saddlebrown")
    rect(x + 20, top + 30, 45, 40, "lightcyan", outline="white", thickness=4)

    # a name for the picture
    text("My house", 20, 44, "white", 28)

  • circle(x, y, radius, colour) draws a filled circle. x, y is its centre.
  • text(words, x, y, colour, size) writes words, starting at x, y.
  • triangle(x1, y1, x2, y2, x3, y3, colour) draws a triangle from its three corners: the roof.
  • The window has outline="white", thickness=4 at the end: a filled shape with a border. Every shape can have one.

The house is placed with x, w, h and top, and everything else is worked out from them. Change w, h = 200, 140 to w, h = 260, 100 and the whole house, roof and door included, changes with it.

5. The long way

There is no ctx in the house: the plain functions drew all of it. ctx is the preview's own drawing surface, and each plain function is a short way of writing what it does. The sun, written the long way, is these four lines:

ctx.fill_style = "gold"
ctx.begin_path()
ctx.arc(width - 80, 80, 45, 0, degrees(360))
ctx.fill()

A circle the long way is an arc that goes all the way round, from 0 to a full turn. degrees(360) is a full turn: it lets you say any angle in degrees. You never need to write a circle like this, but every drawing example you find elsewhere does, and now you can read it. Drawing in 2D shows the rest of what ctx can do.

Try this

  • Change the colours. Any colour name works, or a code such as "#ff8800".
  • Add a cloud: three white circles that overlap.
  • Add a path to the door with a thick line: line(x1, y1, x2, y2, colour, thickness) draws from one point to another, so try line(width / 2, height * 0.7, width / 2, height, "tan", 30).
  • Make it night: a dark blue sky, a pale moon instead of the sun, and "yellow" windows.
  • Make the sun move: add t = 0 above draw(), an update(dt) function that does global t and t += dt, and draw the sun at 80 + t * 20 across.
