Tutorial: A Bouncing Ball

A ball that falls, bounces off the floor and walls, and slows down a little with every bounce. Tap or click to throw it again. Then a version with many balls. This is the pattern behind almost every moving picture: keep numbers in Python, change them in update(dt), and paint them in draw().

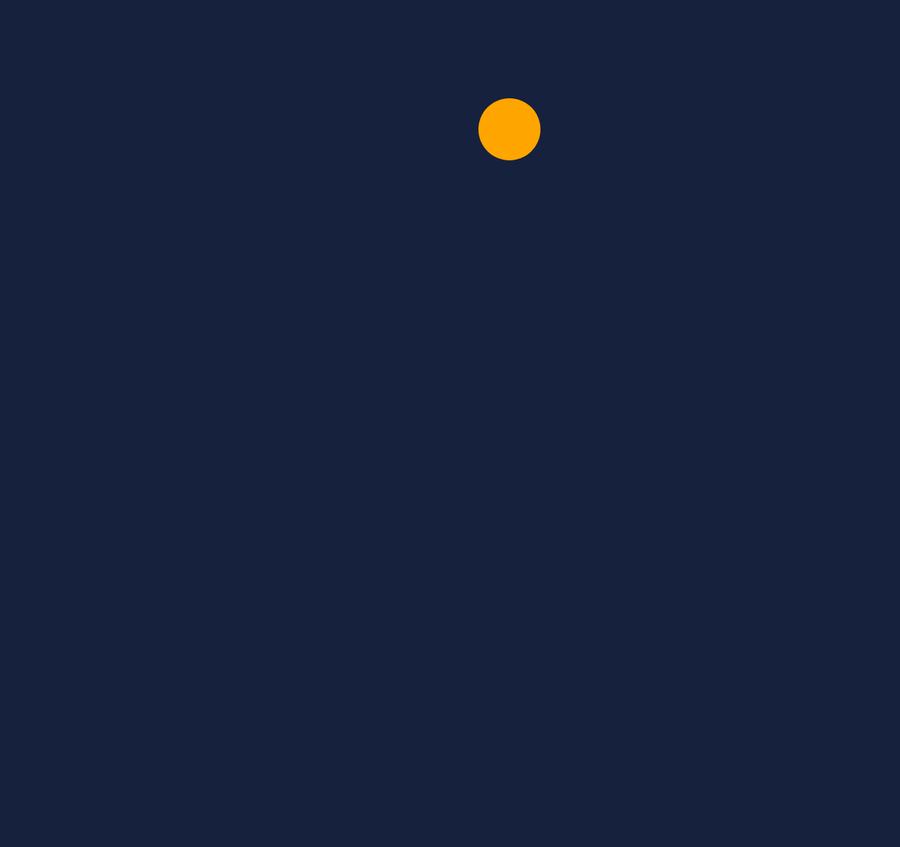

1. A ball that moves

x, y = 100, 100      # where the ball is
vx, vy = 180, 0      # how fast it moves, in points per second
r = 24               # its radius

def update(dt):
    global x, y
    x += vx * dt
    y += vy * dt

def draw():
    background("#16213e")
    circle(x, y, r, "orange")

Run it and the ball slides off to the right and away. Each frame, update(dt) moves it by its speed times dt, the time since the last frame. global x, y lets the function change the variables made at the top.

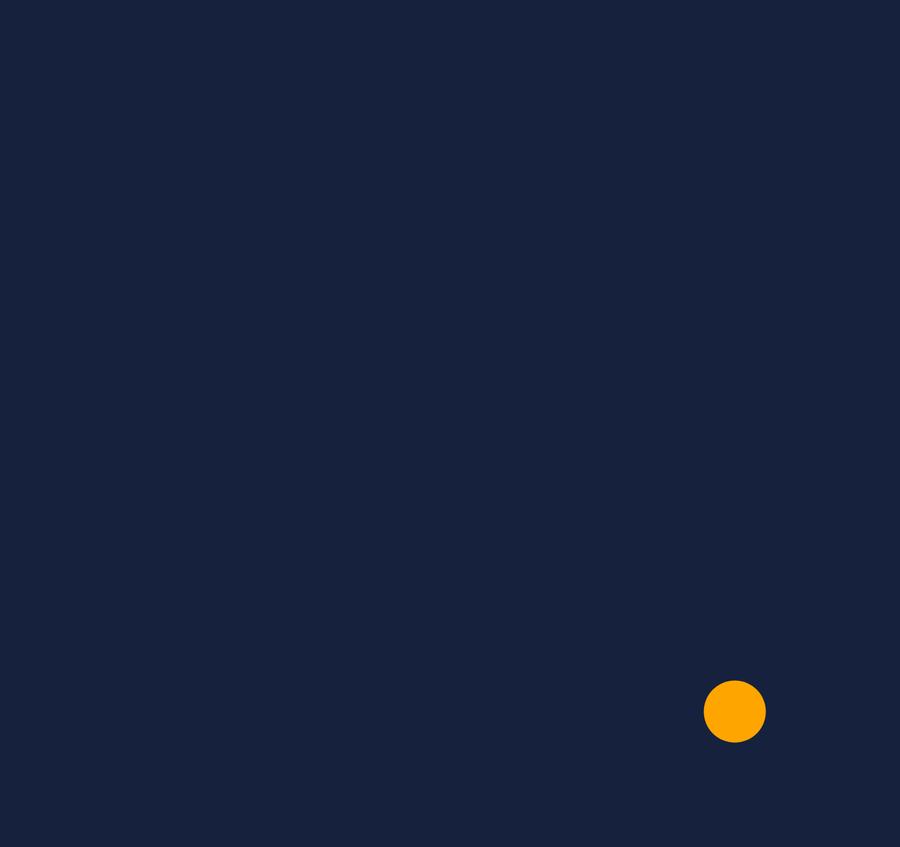

2. Gravity and bounces

Gravity is a steady push downwards: add to vy every frame. A bounce is a speed turned round: when the ball reaches the floor, put it back on the floor and flip vy. Multiplying by 0.8 rather than 1 loses a little speed on each bounce.

# Tap or click to throw the ball.
x, y = 100, 100
vx, vy = 180, 0
r = 24
gravity = 900        # points per second, per second
bounce = 0.8         # how much speed is kept after a bounce

def update(dt):
    global x, y, vx, vy
    vy += gravity * dt
    x += vx * dt
    y += vy * dt

    if y > height - r:           # the floor
        y = height - r
        vy = -vy * bounce
        vx *= 0.99               # a little friction
    if x < r:                    # the left wall
        x = r
        vx = -vx * bounce
    if x > width - r:            # the right wall
        x = width - r
        vx = -vx * bounce

def on_mouse_down(mx, my):
    global x, y, vx, vy
    x, y = mx, my
    vx, vy = 300, -500           # throw it up and to the right

def draw():
    background("#16213e")
    circle(x, y, r, "orange")

on_mouse_down(mx, my) is called when you click, or touch the preview with a finger. It moves the ball to that spot and throws it.

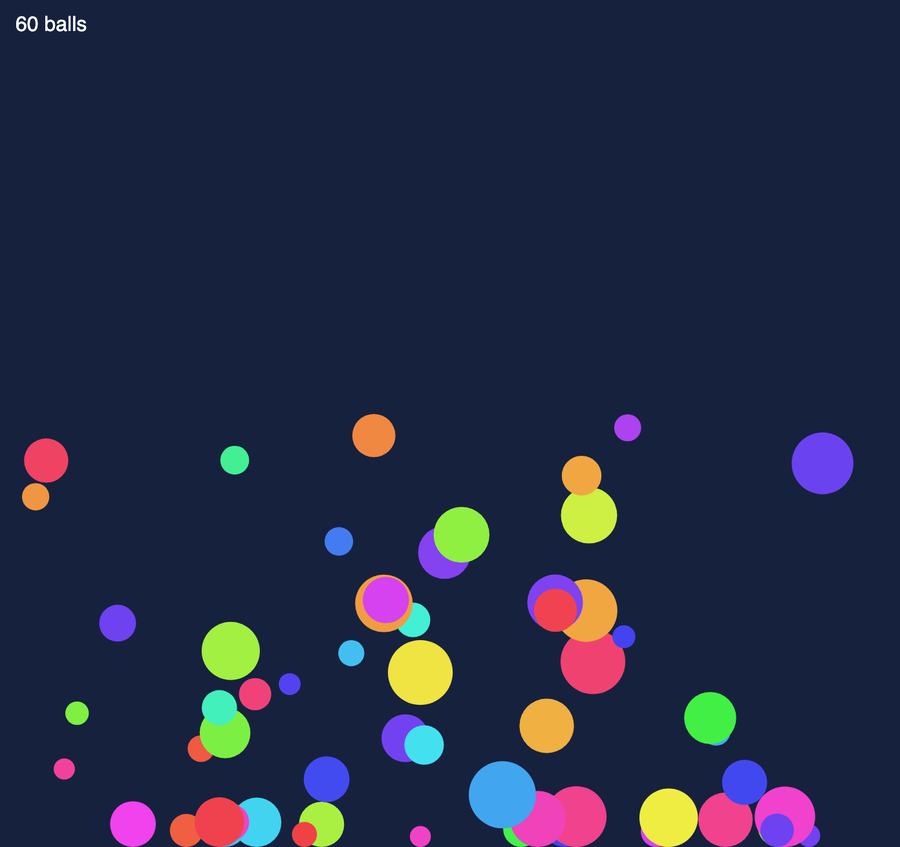

3. Lots of balls

With many balls, each one needs its own numbers. A small class keeps them together.

# Tap or click to add ten more balls.
class Ball:
    def __init__(self, x, y):
        self.x, self.y = x, y
        self.vx = random(-250, 250)
        self.vy = random(-600, -200)
        self.r = random(8, 26)
        self.colour = f"hsl({random(360)}, 85%, 60%)"

    def update(self, dt):
        self.vy += 900 * dt
        self.x += self.vx * dt
        self.y += self.vy * dt
        if self.y > height - self.r:
            self.y = height - self.r
            self.vy *= -0.8
        if self.x < self.r or self.x > width - self.r:
            self.x = min(max(self.x, self.r), width - self.r)
            self.vx *= -0.8

    def draw(self):
        circle(self.x, self.y, self.r, self.colour)

balls = [Ball(random(50, 350), 100) for _ in range(20)]

def on_mouse_down(x, y):
    for _ in range(10):
        balls.append(Ball(x, y))

def update(dt):
    for ball in balls:
        ball.update(dt)

def draw():
    background("#16213e")
    for ball in balls:
        ball.draw()
    ctx.fill_style = "white"
    ctx.font = "16px sans-serif"
    ctx.fill_text(f"{len(balls)} balls", 12, 24)

Turn on Frame rate in the footer and keep adding balls to see how many your device draws smoothly.

The same thing as a loop

The ball of step 2 can also be written as one loop, with no update and no draw. await frame() waits for the screen's next refresh, so each pass of the loop is one frame.

import time

x, y = 100, 100
vx, vy = 180, 0
r = 24
gravity = 900
bounce = 0.8
last = time.monotonic()

while True:
    await frame()                # wait for the screen
    now = time.monotonic()
    dt = now - last              # the time since the last frame
    last = now

    if mouse.down:               # hold to carry the ball, let go to throw it
        x, y = mouse.x, mouse.y
        vx, vy = 300, -500
    vy += gravity * dt
    x += vx * dt
    y += vy * dt
    if y > height - r:
        y = height - r
        vy = -vy * bounce
        vx *= 0.99
    if x < r:
        x = r
        vx = -vx * bounce
    if x > width - r:
        x = width - r
        vx = -vx * bounce

    background("#16213e")
    circle(x, y, r, "orange")

There is no global line: the loop is at the top level of the file, where the variables live. The loop reads mouse itself, in place of on_mouse_down.

update and draw suit games, where things happen in any order and the on_ functions tell you about them. A loop suits a drawing made step by step, or a sequence: first this, then wait, then that. await frame() is also how a scene stays in step with the screen: everything drawn in one pass appears together at the next refresh, so nothing is ever shown half drawn.

Try this

  • Change gravity to 200 for the Moon, or make it negative.
  • Let the balls bounce off the ceiling too.
  • Give each ball a trail: paint the background with "rgba(22, 33, 62, 0.3)" instead of a solid colour, so the last few frames fade out slowly.
